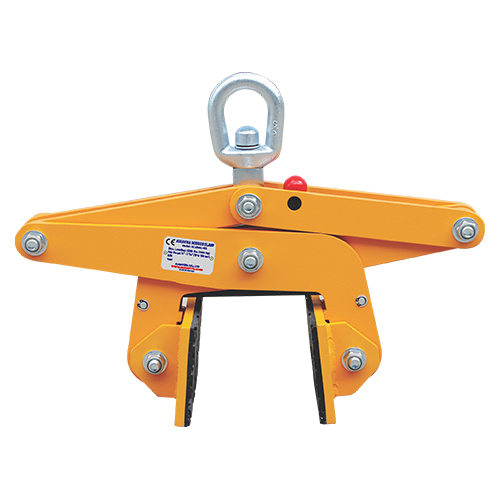

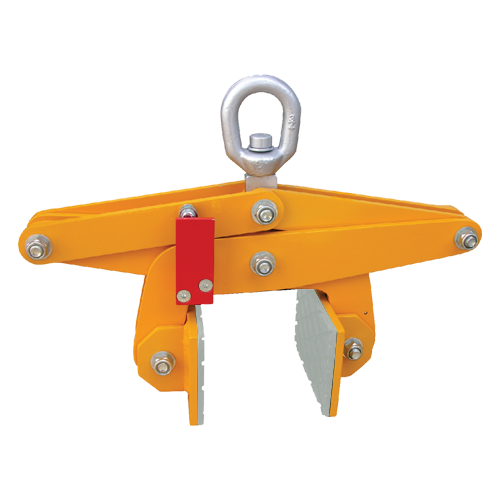

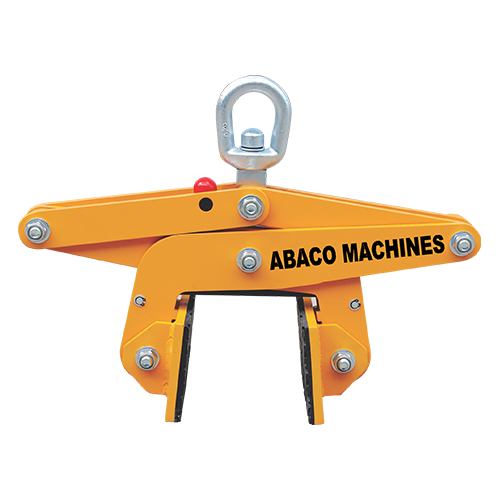

Abaco Scissor Clamps are designed for lifting and transporting stone slabs: granite, marble, porcelain, and other heavy material, such as barriers, curbs, median walls, and tombstones.
The jaws of the lifter are lined with long lasting and fully vulcanized natural rubber pads to ensure a safe and non-marking grip.

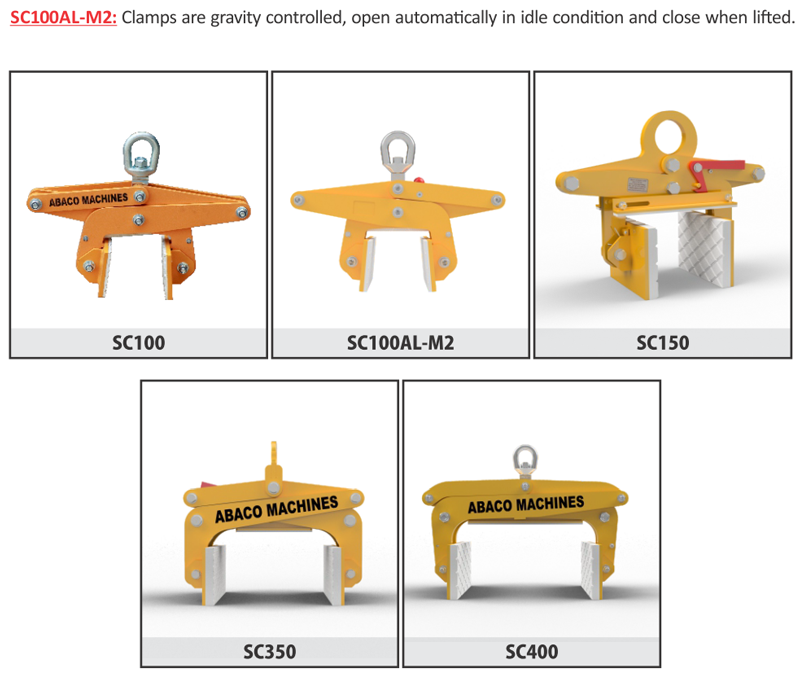

Abaco Scissor Clamp SC100AL features an Auto Lock for easy release; gravity controlled means the clamps open automatically in idle condition and closed when lifted.
Scissor Clamps comes with a bow shackle and swivel shackle. Available with Black Rubber or White Rubber pads.
Limited Stock: Special Order Required for MOST model types. Call us to Order.
Specification Chart: SC100AL-W (regularly stocked)
|
Dimensions |
21-5/16″ x 7-1/16″ x 15-3/4″ (54.2 cm x 18 cm x 40 cm) |
|
Grip Range |
3/8″ ~ 3-15/16″ (1 cm – 10 cm) |
|
Working Load Limit |
2860 lbs (1300 kg) |
|
Net Weight |
47.3 lb (21.5 kg) |
PLEASE NOTE: For all Abaco Lifting Products, follow the manufacturer’s specifications for stone thickness, grip range and W.L.L. when choosing the appropriate Lifter. When using an Abaco Lifting Product, follow all safety instructions and procedures found in the product’s manual.
