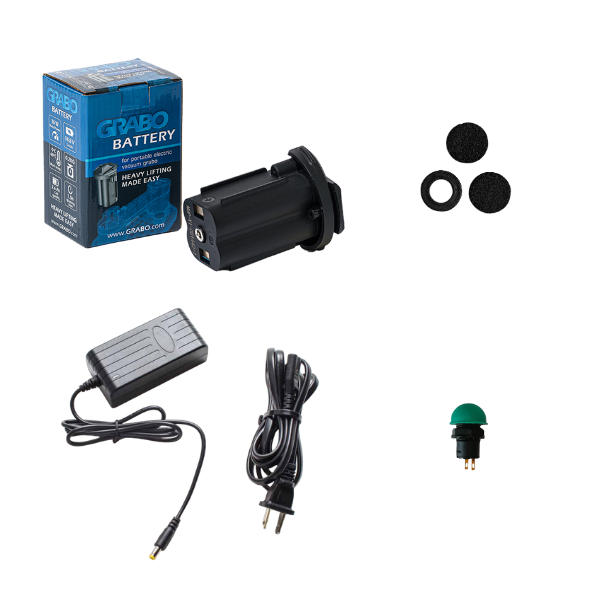

Grabo Replacement Parts & Accessories

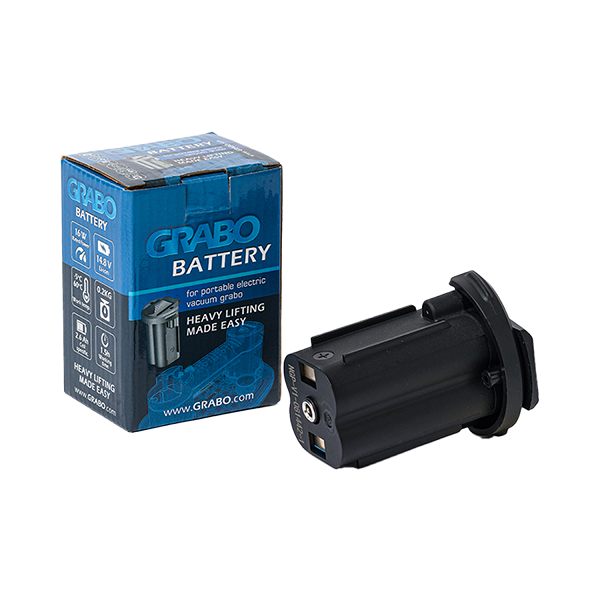

Grabo Battery:
A 14.8V lithium-ion powerhouse, enhances the performance of all GRABO models. With a durable 2600mAh capacity, it ensures extended power for your lifting tasks. Designed to fit both the Nemo GRABO and GRABO Pro-Lifter 20 seamlessly, this 4-cell battery is the ideal choice for a dependable replacement or backup power source.
- Top quality
- Osha approved
- Working Time on full charge: 1.5 hours
- 2 hour charge time
- Perfect for industrial and commercial applications
Specifications:
| Type | Li-ion 2600 mAh / 14.8 V (4x cells 3.7 V) |
|---|---|
| L x W x H | 3.5 x 2.8 x 2.2” (90 x 70 x 55 mm) |
| Weight | 0.7 Lbs (0.28 kg) |
| Rated Capacity | 2.6 Ah |
| Nominal Voltage | 14.8 V |
| Charge Voltage | 16.8 V |
| Charge Current | 520 mA |
| Operating Temperature | 32 – 115 F (0 – 45 C) Charge-4 – 140 F (-20 – 60 C) Discharge |
| Storage Temperature | -40 – 257 F (-40 – 125 C) |
| Overcharge Protection | 4.25V |
| Features | Overcharge / Overdischarge / Over current protectionFits all Grabo models |
| Long Term Storage | For storage over 3 month store in dry and cool place at 40 – 70 F (~5 – 20 C) charged to 14.4 – 15.6 V (80 – 90%% of full charge) |
Grabo Battery Charger
Battery chargers keep your GRABO suction cups working at full power. Extra gear is the key to uninterrupted workflow. Plan for everything with an extra charger to use your GRABO all day long. GRABO battery chargers work from 100 to 240 volts at 50/60Hz
Specifications:
| Type | AC/DC Converter |
|---|---|
| Input Voltage, VAC | 100_110_240 |
| Input Frequency, Hz | 47_50_60_63 |
| Input Current, A | 0.5 A max (@200-240 VAC) |
| Output Voltage, VDC | 16.8V rated, 8-12V under load |
| Output Current, A | 200-400 mA under load, 1.4 A max |
| Rated Power | 23.52 W |
| L x W x H | 3.8 x 1.8 x 1.2” (95 x 46 x 30 mm) |
| Wall Socket Connectors | US / EU / UK multisocket head(fits all power grids) |
| Operating Temperature | 32 – 105 F (0 – 40 C) |
| Storage Temperature | -4 – 185 F (-20 – 85 C) |
| Working Conditions | Indoor use onlyNot waterproof (IP0) |
