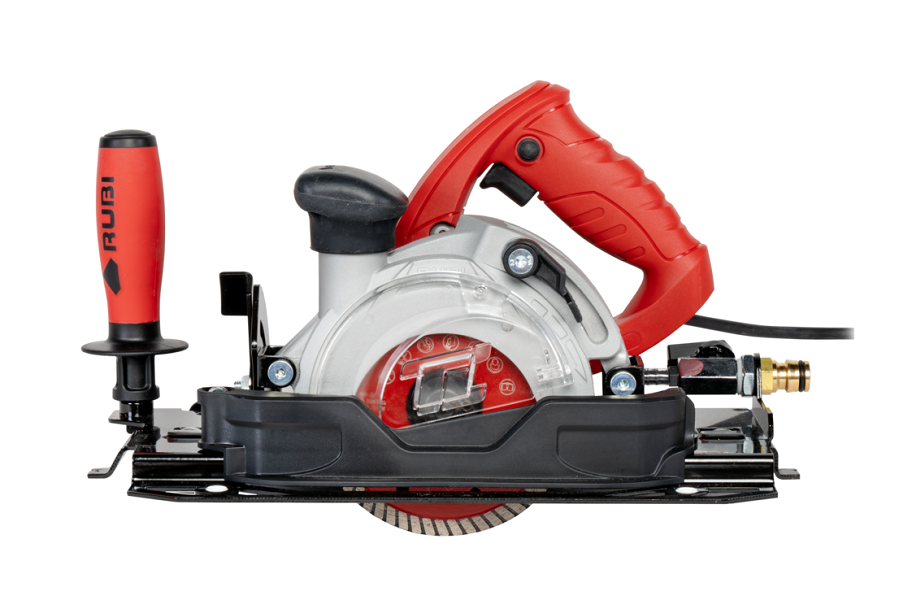

Rubi TC-125 G2 – 5″ Wet & Dry Circular Saw

Perfect for cutting all Ceramic tiles, large Porcelain/Sintered slabs & Natural stone

  • Equipped with vacuum port and water feed system
  • Cutting head is able to adjust for 45-degree miter cuts
  • Max. Cutting Length: 320cm
  • Cutting Height: 20-25mm
  • Miter Cut thickness: 14-18mm
  • 7/8″ arbor, 13,800 RPM, 110V, 16A
  • Saw MUST BE USED with the Rubi SLIM SYSTEM G2 guides to achieve precise & smooth cuts

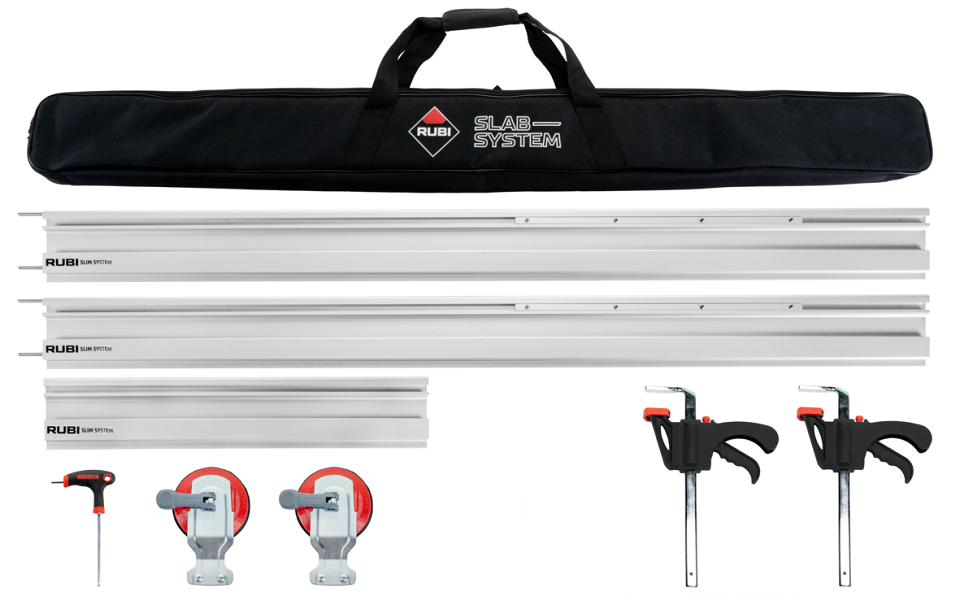

    • 51949: Guide Rail Kit includes: (2) 155 cm Guide Rails, (1) 65cm Guide Rail, (2) suction cups, (2) clamps for additional fixing of slim guides, and carrying bag





SKU: RB-519-Parent Category:
Rubi TC-125 G2 – 5″ Wet & Dry Circular Saw
Please enable JavaScript in your browser to complete this form.
When would you like to call back?

Rubi TC-125 G2 Circular Saw Kit (Saw + Guide Rail Kit, sold separately)

Circular saw for cutting porcelain slabs and all types of ceramic tiles. Suitable for dry or wet cutting. Suitable for natural stone and sintered stone. Particularly suitable for large format pieces.

The TC-125 is equipped with a sliding platform on adjustable radial bearings. It is essential to use it on SLIM SYSTEM G2 slides.

The double dust reduction/control system makes the TC-125 suitable for; dry cutting with direct connection to the vacuum cleaner (Ø 32 mm)* or wet cutting with the regulating valve and hose connection (Ø 16 mm)**.

Compatible with 5″ and 4.5″ diameter blades (suitable for blades with reinforcement plate). Includes SAFETY lock switch to prevent unintentional starting. Electric cable with PRCD.

The blade protector, made of die-cast aluminum with a transparent Poly-carbonate cover, has a quick opening and closing system. It makes EASIER to change the blade and MINIMISES particles and water ejected.

The tilting side guard for miter cutting REDUCES water splashes and IMPROVES dust extraction.

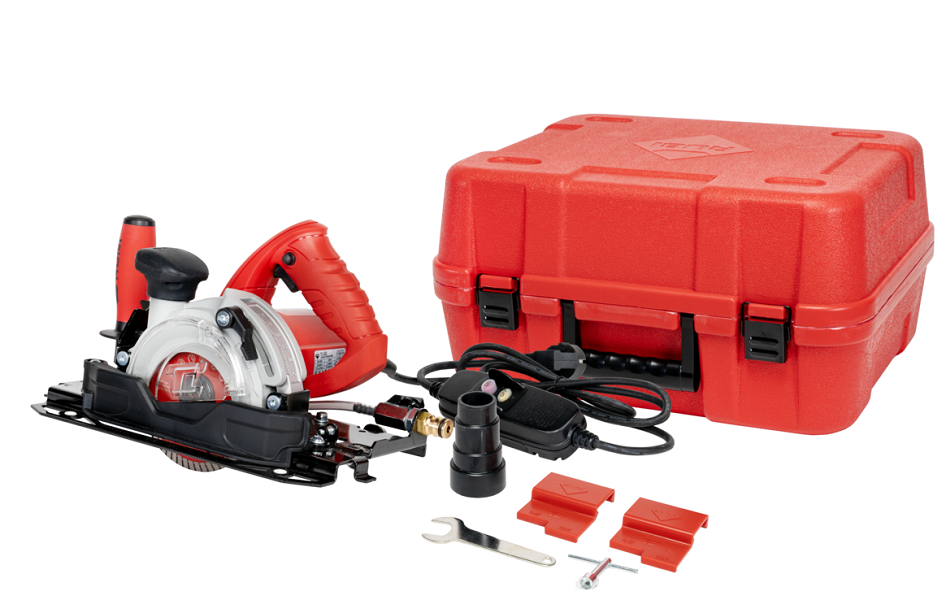

The TC-125 is supplied complete with the TVR-125 SUPERPRO blade (for dry cutting), carrying case and accessories (vacuum cleaner adapter and 2 cut positioners)

To complete the TC-125 G2, it is necessary to purchase reference #51949, which includes the guides (2 x 155 cm and 1 x 65 cm), the suction cups and the clamps, in addition to the circular cutter reference with the desired voltage.

*The TC-125 also includes an adapter for the vacuum cleaner (Ø37, 42 and 50 mm). **The TC-125 does not include the quick coupling for the water hose.

Additional information

Brand

Rubi Tools

Part

51949 Slim System G2 Guides, 51977 TC-125 G2 Saw
