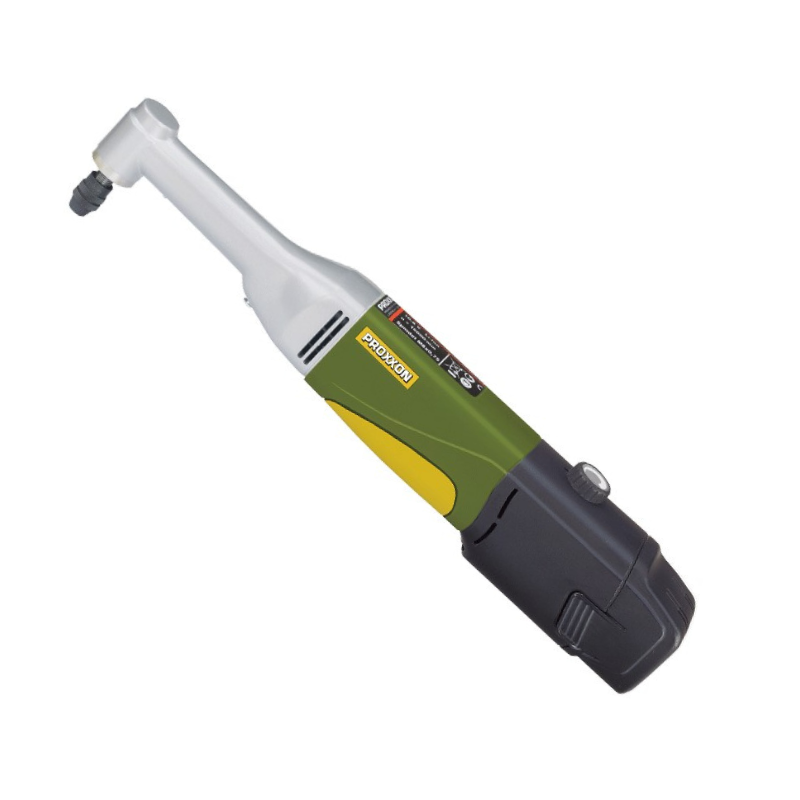

The Proxxon LWB/A Cordless Long Neck Angle Milling/Drilling Unit is a specialized cordless rotary tool designed for precision tasks in confined or restricted spaces. Engineered with a slim, elongated gear head, this unit allows users to perform drilling, milling, sanding, and polishing where standard rotary tools cannot reach.
By combining a high-torque DC motor with the mobility of 10.8V lithium-ion technology, the LWB/A provides a cordless solution that maintains the power and stability typically associated with mains-powered equipment.
Key Technical Specifications
- Speed Range: 5,000 to 16,000 rpm (Infinitely variable)
- Power Source: 10.8V / 2.6Ah Lithium-ion battery
- Runtime: Approximately 30 minutes at maximum power per charge
- Construction: Die-cast aluminum gear head; glass-fiber reinforced POLYAMIDE housing
- Weight: 1.76 lbs (including battery)
- Length: 12.6 inches (320mm)
- Collet System: Includes 6 MICROMOT hardened steel collets (0.04″ – 0.13″)
Applications
The LWB/A is optimized for mechanical engineering, model building, and restorative work. Common applications include:

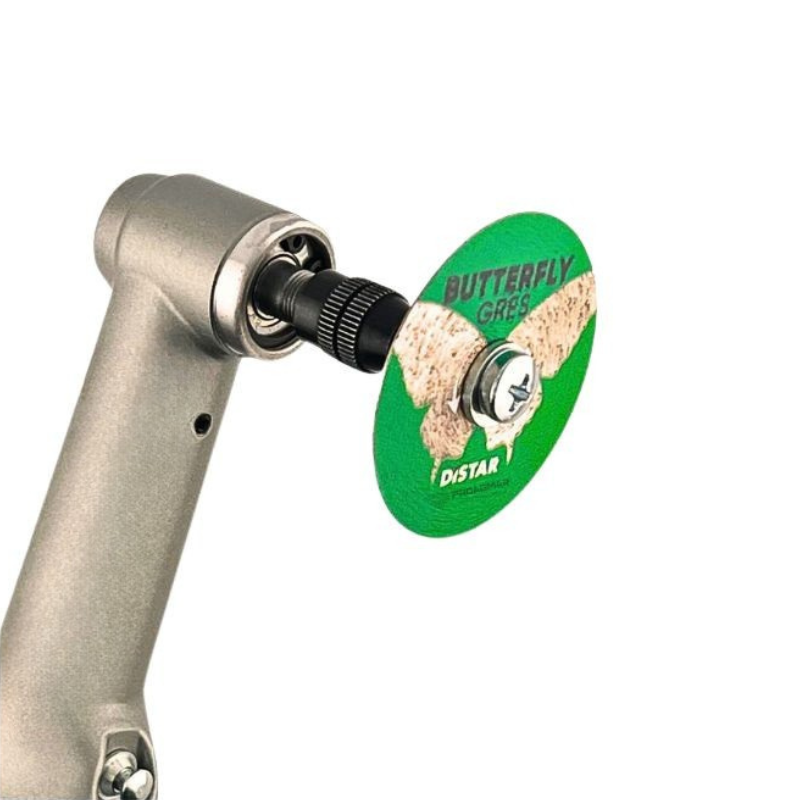

- Tile Cutting & Grinding: Accessing tight corners in masonry or ceramic work.
- Metal Milling: Removing material in deep recesses of engine parts or molds.
- Wood Finishes: Detail sanding and polishing in intricate carvings.
- De-burring: Smoothing edges in internal pipework or channeled components.
Maintenance and Usage Guidelines
- Heat Management: Ensure cooling vents remain unobstructed during operation; wipe the housing down after use in dusty environments.

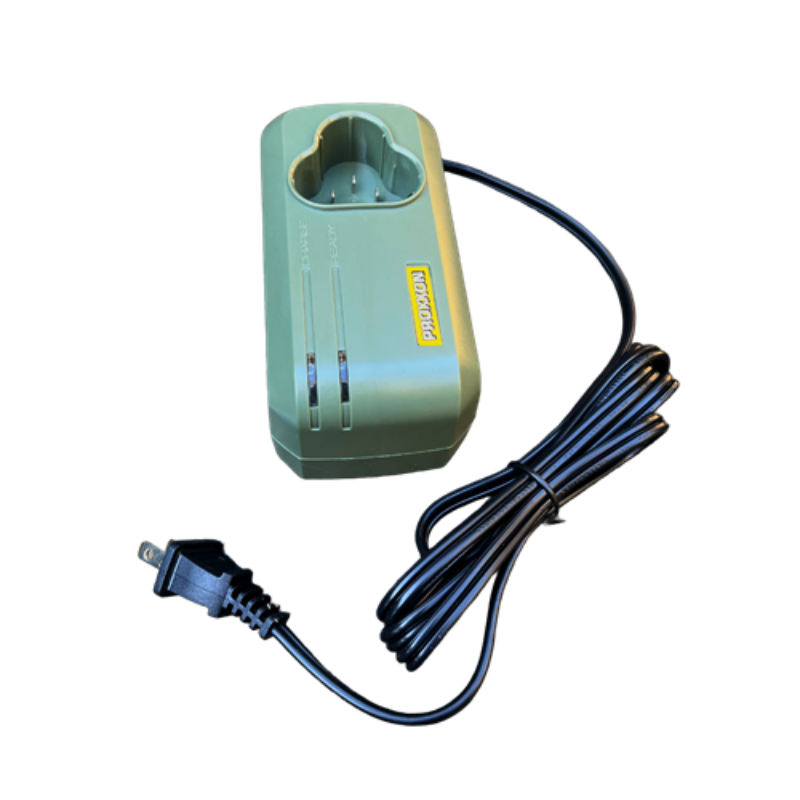

- Battery Care: Use the included rapid charger to maintain the 2.6Ah battery’s cycle life.

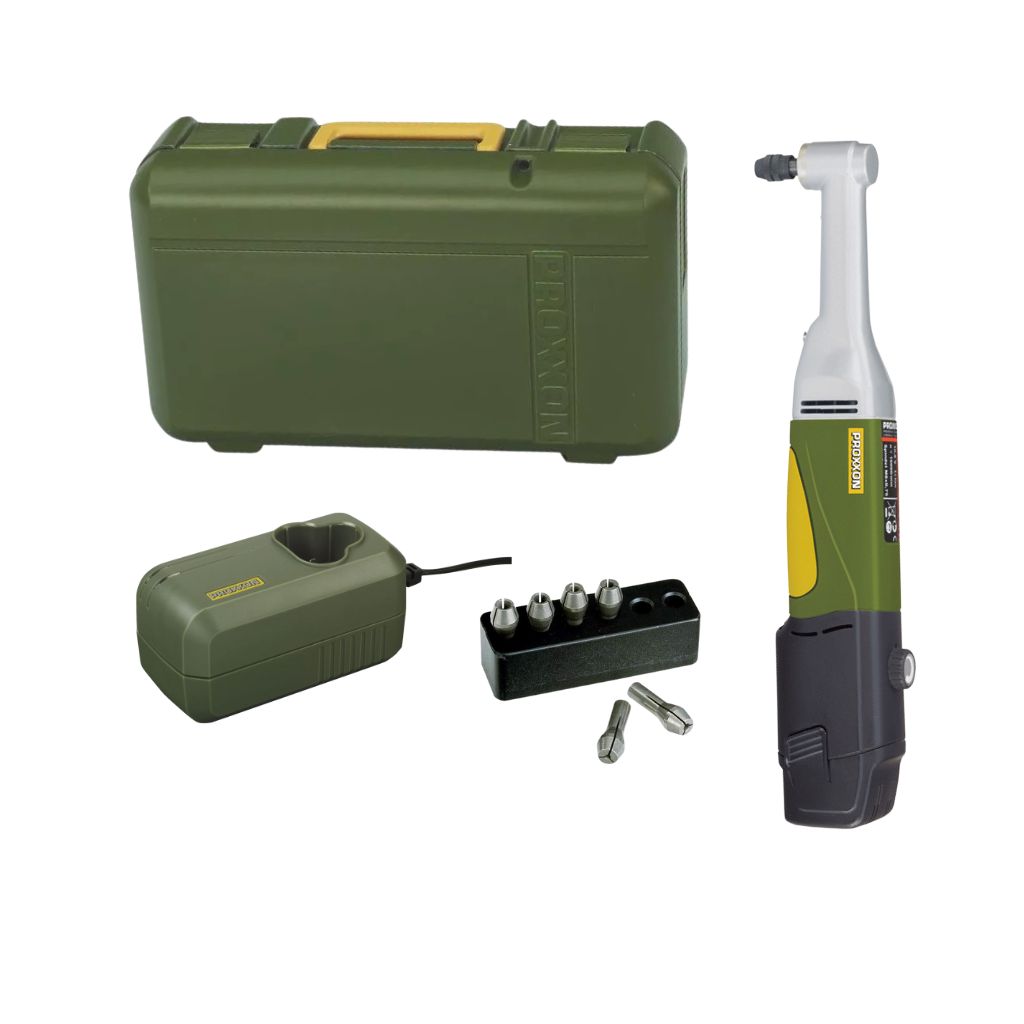

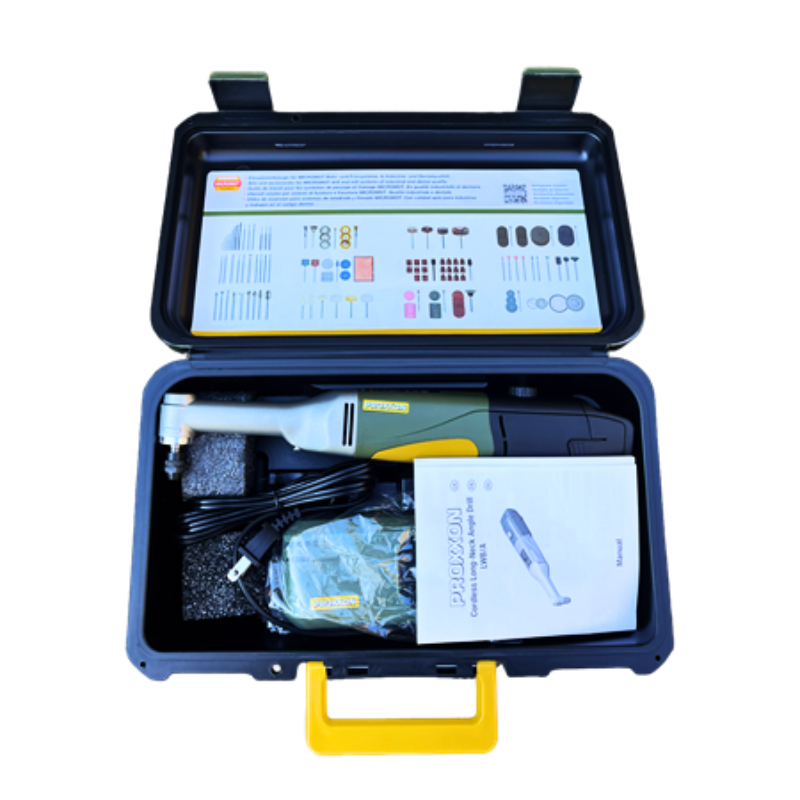

- Storage: The unit is designed with a flat end cap, allowing it to stand upright between tasks. Store in the provided high-grade plastic case to protect the precision gear head.
